Advanced Motor Protection with Extended Durability

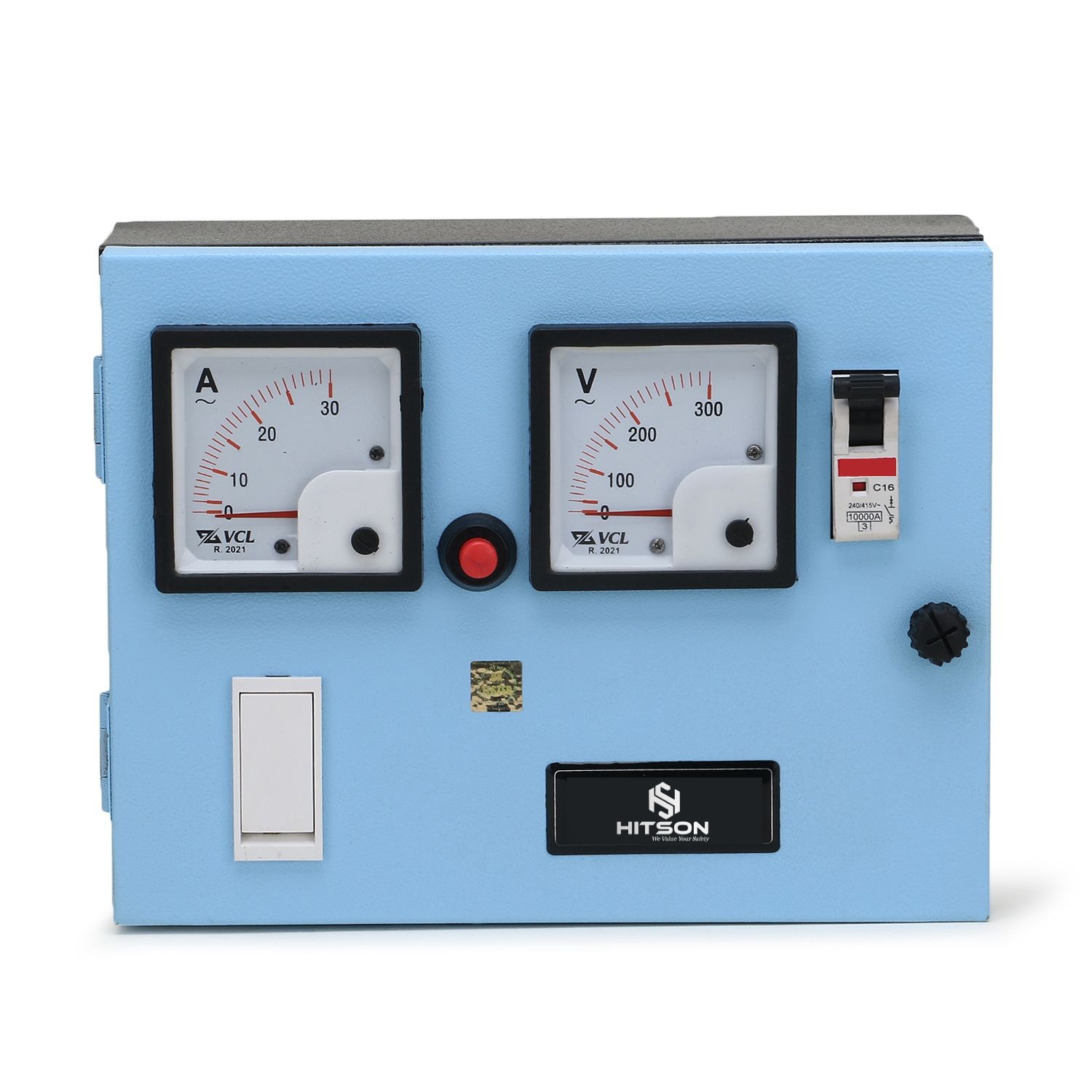

The Oil Filled E Series Panel by HITSON is a premium-grade submersible control panel engineered for high-performance applications in agricultural and industrial settings. Specifically designed for oil-filled submersible motors, this panel ensures reliable operation, optimal protection, and long-lasting service life even in demanding field conditions.
Precision Control & Smooth Operation
Equipped with high-quality components to deliver consistent performance and smooth motor startup.
Enhanced Motor Protection
Built-in overload, dry run, short-circuit, and voltage fluctuation protection safeguards your motor from electrical faults and water level anomalies.
Field-Tested Durability
Designed for rugged environments, the panel is made using heavy-duty enclosures with anti-corrosive coating to withstand weather and dust.
Energy Efficient
Minimizes power wastage while maintaining optimal output, reducing electricity consumption over time.
Easy Installation & Maintenance
User-friendly layout and clear terminal markings make it easy for electricians and technicians to install or service in the field.
Compatible with Oil-Filled Submersible Pumps
Optimally tuned to manage oil-filled motors used in deep-well pumping applications.
| Specification | Details |
|---|---|
| Rated Voltage | Up to 36 kV |
| Rated Current | Up to 3150 A |
| Short-Circuit Rating | 25 kA for 3 sec |
| Insulating Medium | Mineral Oil (IEC 60296 compliant) |
| Cooling Type | ONAN (Oil Natural Air Natural) |
| Panel Type | Metal-clad, compartmentalized |
| Protection Class | IP55 (Indoor/Outdoor) |
| Operating Temperature | -10°C to +50°C |
| Relative Humidity | <95% RH (non-condensing) |
| Control & Monitoring | SCADA-compatible, microprocessor-based protection relays |
| Busbar Material | High-conductivity electrolytic copper |
| Oil Tank Design | Hermetically sealed or conservator-type |
| Cable Entry | Top/Bottom entry (customizable) |
| Standards Complied | IEC 62271-200, IS 3427, IEC 60076 |
| Dimensions (WxDxH) | Varies (Typically ~1000x1500x2200 mm per panel) |
| Weight | Approx. 800–1500 kg per panel (depending on configuration) |
Agricultural irrigation systems
Borewell pumping
Industrial water supply
Rural water management projects
Since 2008, HITSON has been trusted for its innovative, efficient, and durable water control solutions across India. This panel is another testament to our commitment to quality and customer satisfaction.
